Contact
System 400
Operator Assisted
Component
Location Cut
and Clinch
System

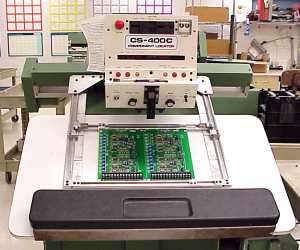

The
CS-400 semi-automatic
insertion
machine contains
all the features
which have
become recognized
benchmarks
for cut &
clinch machines;
ergonomic
design, inward
and outward
clinching,
miniature
cutter footprint,
quick and
easy setup,
rugged construction,
and extremely
reliable operation.
In
recent years
many companies
have found
that the cut &
clinch assembly
method offers the
highest efficiency
and quality
of any manual
assembly method.
The benefits
of cut & clinch
are:
- Improved
solderability
- No component
spillage
or pop-up
during
wave soldering
- Simple
lead forming
- Easier
insertion
- No post-solder
lead trimming
Two
brilliant
spots of lights
are projected
onto the component
holes for
fast
and accurate
component
location.
